Document Object Model (DOM)

The Document Object Model (DOM) is a cross-platform and language-independent application programming interface that treats an HTML, XHTML, or XML document as a tree structure wherein each node is an object representing a part of the document. The objects can be manipulated programmatically and any visible changes occurring as a result may then be reflected in the display of the document.

History

JavaScript was released by Netscape Communications in 1995 within Netscape Navigator 2.0. Netscape’s competitor, Microsoft, released Internet Explorer 3.0 the following year with a reimplementation of JavaScript called JScript. JavaScript and JScript let web developers create web pages with client-side interactivity. The limited facilities for detecting user-generated events and modifying the HTML document in the first generation of these languages eventually became known as “DOM Level 0” or “Legacy DOM.” No independent standard was developed for DOM Level 0, but it was partly described in the specifications for HTML 4.

Legacy DOM was limited in the kinds of elements that could be accessed. Form, link and image elements could be referenced with a hierarchical name that began with the root document object. A hierarchical name could make use of either the names or the sequential index of the traversed elements.

In 1997, Netscape and Microsoft released version 4.0 of Netscape Navigator and Internet Explorer respectively, adding support for Dynamic HTML (DHTML) functionality enabling changes to a loaded HTML document. DHTML required extensions to the rudimentary document object that was available in the Legacy DOM implementations. Although the Legacy DOM implementations were largely compatible since JScript was based on JavaScript, the DHTML DOM extensions were developed in parallel by each browser maker and remained incompatible. These versions of the DOM became known as the “Intermediate DOM.”

After the standardization of ECMAScript, the W3C DOM Working Group began drafting a standard DOM specification. The completed specification, known as “DOM Level 1”, was recommended by W3C in late 1998. By 2005, large parts of W3C DOM were well-supported by common ECMAScript-enabled browsers, including Microsoft Internet Explorer version 6 (from 2001), Opera, Safari and Gecko-based browsers (like Mozilla, Firefox, SeaMonkey and Camino).

Application

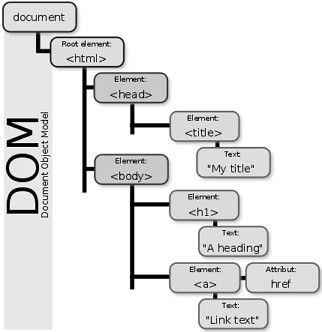

To render a document such as an HTML page, most web browsers use an internal model similar to the DOM. The nodes of every document are organized in a tree structure, called the DOM tree, with the topmost node named as “Document object”. When an HTML page is rendered in browsers, the browser downloads the HTML into local memory and automatically parses it to display the page on screen.

When a web page is loaded, the browser creates a Document Object Model of the page, which is an object oriented representation of an HTML document, that acts as an interface between JavaScript and the document itself and allows the creation of dynamic web pages:

• JavaScript can add, change, and remove all of the HTML elements and attributes in the page.
• JavaScript can change all of the CSS styles in the page.
• JavaScript can react to all of the existing events in the page.
• JavaScript can create new events within the page.

Because DOM supports navigation in any direction (e.g., parent and previous sibling) and allows for arbitrary modifications, an implementation must at least buffer the document that has been read so far (or some parsed form of it).

Example

<h1 id=”demo”>This is a Heading</h1>

<script>

document.getElementById(“demo”).innerHTML = “Hello World!”;

document.getElementsByTagName(“h1”)[0].innerHTML = “Hello World!”;

</script>

Layout engines

Web browsers rely on layout engines to parse HTML into a DOM. Some layout engines, such as Trident/MSHTML, are associated primarily or exclusively with a particular browser, such as Internet Explorer. Others, including Blink, WebKit, and Gecko, are shared by a number of browsers, such as Google Chrome, Opera, Safari, and Firefox. The different layout engines implement the DOM standards to varying degrees of compliance.

The W3C DOM and WHATWG DOM standards are implemented in most modern browsers. Many browsers extend the standard, so care must be exercised when using them on the web where documents may be accessed by various browsers with different DOMs.

For example, the standard DOM specifies that the getElementsByTagName method in the code below must return a list of all the <P> elements in the document:

var paragraphs = document.getElementsByTagName(“P”);

// paragraphs[0] is the first <p> element

// paragraphs[1] is the second <p> element, etc.

alert(paragraphs[0].nodeName);

All of the properties, methods, and events available for manipulating and creating web pages are organized into objects (e.g., the document object that represents the document itself, the table object that implements the special HTMLTableElement DOM interface for accessing HTML tables, and so forth). This documentation provides an object-by-object reference to the DOM implemented in Gecko-based browsers.

DOM and JavaScript

The example above, is written in JavaScript, but it uses the DOM to access the document and its elements. The DOM is not a programming language, but without it, the JavaScript language wouldn’t have any model or notion of web pages, HTML documents, XML documents, and their component parts (e.g. elements). Every element in a document—the document as a whole, the head, tables within the document, table headers, text within the table cells—is part of the document object model for that document, so they can all be accessed and manipulated using the DOM and a scripting language like JavaScript.

Accessing the DOM

You don’t have to do anything special to begin using the DOM. Different browsers have different implementations of the DOM, and these implementations exhibit varying degrees of conformance to the actual DOM standard (a subject we try to avoid in this documentation), but every web browser uses some document object model to make web pages accessible to script.

When you create a script–whether it’s inline in a <script> element or included in the web page by means of a script loading instruction–you can immediately begin using the API for the document or window elements to manipulate the document itself or to get at the children of that document, which are the various elements in the web page. Your DOM programming may be something as simple as the following, which displays an alert message by using the alert() function from the window object, or it may use more sophisticated DOM methods to actually create new content, as in the longer example below.

This following JavaScript will display an alert when the document is loaded (and when the whole DOM is available for use).

<body onload=”window.alert(‘Welcome to my home page!’);”>

DOM Programming Interface

HTML DOM methods are actions you can perform (on HTML Elements). HTML DOM properties are values (of HTML Elements) that you can set or change. The HTML DOM can be accessed with JavaScript (and with other programming languages). In the DOM, all HTML elements are defined as objects. The programming interface is the properties and methods of each object. A property is a value that you can get or set (like changing the content of an HTML element). A method is an action you can do (like add or deleting an HTML element).

Interface and Objects

Many objects borrow from several different interfaces. The table object, for example, implements a specialized HTML Table Element Interface, which includes such methods as createCaption and insertRow. But since it’s also an HTML element, table implements the Element interface. And finally, since an HTML element is also, as far as the DOM is concerned, a node in the tree of nodes that make up the object model for an HTML or XML page, the table object also implements the more basic Node interface, from which Element derives.

Document and window objects are the objects whose interfaces you generally use most often in DOM programming. In simple terms, the window object represents something like the browser, and the document object is the root of the document itself. Element inherits from the generic Node interface, and together these two interfaces provide many of the methods and properties you use on individual elements. These elements may also have specific interfaces for dealing with the kind of data those elements hold, as in the table object.

The following is a brief list of common APIs in web and XML page scripting using the DOM

• getElementById(id)
• getElementsByTagName(name)
• createElement(name)
• appendChild(node)
• innerHTML
• style.left
• setAttribute()
• getAttribute()
• addEventListener()
• content
• onload
• dump()
• scrollTo()
