In HBase, data is stored in tables, which have rows and columns. This is a terminology overlap with relational databases (RDBMSs), but this is not a helpful analogy. Instead, it can be helpful to think of an HBase table as a multi-dimensional map.

HBase Data Model Terminology

Table – An HBase table consists of multiple rows.

Row – A row in HBase consists of a row key and one or more columns with values associated with them. Rows are sorted alphabetically by the row key as they are stored. For this reason, the design of the row key is very important. The goal is to store data in such a way that related rows are near each other. A common row key pattern is a website domain. If your row keys are domains, you should probably store them in reverse (org.apache.www, org.apache.mail, org.apache.jira). This way, all of the Apache domains are near each other in the table, rather than being spread out based on the first letter of the subdomain.

Column – A column in HBase consists of a column family and a column qualifier, which are delimited by a : (colon) character.

Column Family – Column families physically colocate a set of columns and their values, often for performance reasons. Each column family has a set of storage properties, such as whether its values should be cached in memory, how its data is compressed or its row keys are encoded, and others. Each row in a table has the same column families, though a given row might not store anything in a given column family.

Column Qualifier – A column qualifier is added to a column family to provide the index for a given piece of data. Given a column family content, a column qualifier might be content:html, and another might be content:pdf. Though column families are fixed at table creation, column qualifiers are mutable and may differ greatly between rows.

Cell – A cell is a combination of row, column family, and column qualifier, and contains a value and a timestamp, which represents the value’s version.

Timestamp – A timestamp is written alongside each value, and is the identifier for a given version of a value. By default, the timestamp represents the time on the RegionServer when the data was written, but you can specify a different timestamp value when you put data into the cell.

To summarize

Table: Collection of rows present.
Row: Collection of column families.
Column Family: Collection of columns.
Column: Collection of key-value pairs.
Namespace: Logical grouping of tables.
Cell: A {row, column, version} tuple exactly specifies a cell definition in HBase.

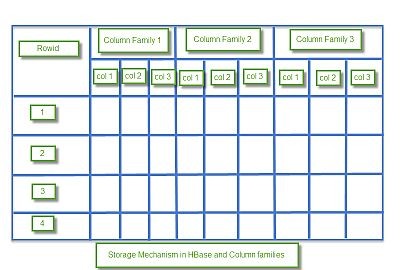

HBase Data Model consists of following elements,

Set of tables
Each table with column families and rows
Each table must have an element defined as Primary Key.
Row key acts as a Primary key in HBase.
Any access to HBase tables uses this Primary Key
Each column present in HBase denotes attribute corresponding to object

Components

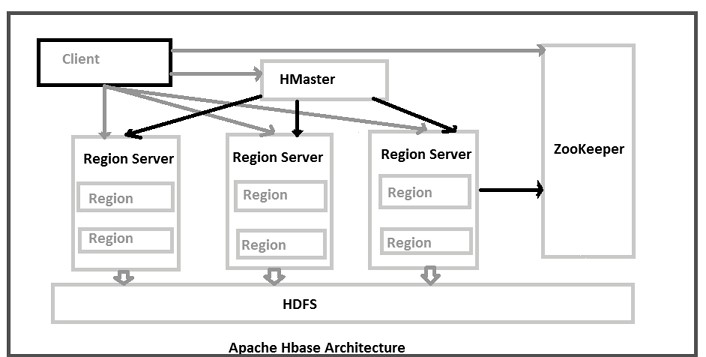

HBase architecture consists mainly of four components

HMaster
HRegionserver
HRegions
Zookeeper
HDFS

HMaster: HMaster is the implementation of a Master server in HBase architecture. It acts as a monitoring agent to monitor all Region Server instances present in the cluster and acts as an interface for all the metadata changes. In a distributed cluster environment, Master runs on NameNode. Master runs several background threads.

The following are important roles performed by HMaster in HBase.

Plays a vital role in terms of performance and maintaining nodes in the cluster.
HMaster provides admin performance and distributes services to different region servers.
HMaster assigns regions to region servers.
HMaster has the features like controlling load balancing and failover to handle the load over nodes present in the cluster.
When a client wants to change any schema and to change any Metadata operations, HMaster takes responsibility for these operations.

Some of the methods exposed by HMaster Interface are primarily Metadata oriented methods.

Table (createTable, removeTable, enable, disable)
ColumnFamily (add Column, modify Column)
Region (move, assign)

The client communicates in a bi-directional way with both HMaster and ZooKeeper. For read and write operations, it directly contacts with HRegion servers. HMaster assigns regions to region servers and in turn, check the health status of region servers.

In entire architecture, we have multiple region servers. Hlog present in region servers which are going to store all the log files.

HBase Regions Servers: When Region Server receives writes and read requests from the client, it assigns the request to a specific region, where the actual column family resides. However, the client can directly contact with HRegion servers, there is no need of HMaster mandatory permission to the client regarding communication with HRegion servers. The client requires HMaster help when operations related to metadata and schema changes are required.

HRegionServer is the Region Server implementation. It is responsible for serving and managing regions or data that is present in a distributed cluster. The region servers run on Data Nodes present in the Hadoop cluster.

HMaster can get into contact with multiple HRegion servers and performs the following functions.

Hosting and managing regions
Splitting regions automatically
Handling read and writes requests
Communicating with the client directly

Region assignment, DDL (create, delete tables) operations are handled by the HBase Master.

A master is responsible for:

Coordinating the region servers
Assigning regions on startup , re-assigning regions for recovery or load balancing
Monitoring all RegionServer instances in the cluster (listens for notifications from zookeeper)
Admin functions
Interface for creating, deleting, updating tables

HBase Regions: HRegions are the basic building elements of HBase cluster that consists of the distribution of tables and are comprised of Column families. It contains multiple stores, one for each column family. It consists of mainly two components, which are Memstore and Hfile.

HBase Tables are divided horizontally by row key range into “Regions.” A region contains all rows in the table between the region’s start key and end key. Regions are assigned to the nodes in the cluster, called “Region Servers,” and these serve data for reads and writes. A region server can serve about 1,000 regions.

ZooKeeper: HBase uses ZooKeeper as a distributed coordination service to maintain server state in the cluster. Zookeeper maintains which servers are alive and available, and provides server failure notification. Zookeeper uses consensus to guarantee common shared state. Note that there should be three or five machines for consensus.

In HBase, Zookeeper is a centralized monitoring server which maintains configuration information and provides distributed synchronization. Distributed synchronization is to access the distributed applications running across the cluster with the responsibility of providing coordination services between nodes. If the client wants to communicate with regions, the server’s client has to approach ZooKeeper first. It is an open source project, and it provides so many important services.

Services provided by ZooKeeper

Maintains Configuration information
Provides distributed synchronization
Client Communication establishment with region servers
Provides ephemeral nodes for which represent different region servers
Master servers usability of ephemeral nodes for discovering available servers in the cluster
To track server failure and network partitions

Master and HBase slave nodes ( region servers) registered themselves with ZooKeeper. The client needs access to ZK(zookeeper) quorum configuration to connect with master and region servers.

During a failure of nodes that present in HBase cluster, ZKquoram will trigger error messages, and it starts to repair the failed nodes.

HDFS:- HDFS is a Hadoop distributed file system, as the name implies it provides a distributed environment for the storage and it is a file system designed in a way to run on commodity hardware. It stores each file in multiple blocks and to maintain fault tolerance, the blocks are replicated across a Hadoop cluster.

HDFS provides a high degree of fault –tolerance and runs on cheap commodity hardware. By adding nodes to the cluster and performing processing & storing by using the cheap commodity hardware, it will give the client better results as compared to the existing one.

In here, the data stored in each block replicates into 3 nodes any in a case when any node goes down there will be no loss of data, it will have a proper backup recovery mechanism.

HDFS get in contact with the HBase components and stores a large amount of data in a distributed manner.

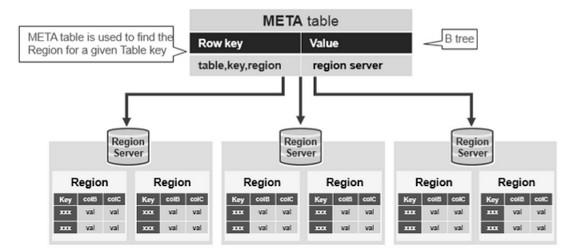

HBase Meta Table

This META table is an HBase table that keeps a list of all regions in the system. The .META. table is like a b tree.

The .META. table structure is as follows:

Key: region start key,region id
Values: RegionServer

HDFS

The Hadoop Distributed File System (HDFS) is a distributed file system designed to run on commodity hardware. It has many similarities with existing distributed file systems. However, the differences from other distributed file systems are significant. HDFS is highly fault-tolerant and is designed to be deployed on low-cost hardware. HDFS provides high throughput access to application data and is suitable for applications that have large data sets.

NameNode and DataNodes – HDFS has a master/slave architecture. An HDFS cluster consists of a single NameNode, a master server that manages the file system namespace and regulates access to files by clients. In addition, there are a number of DataNodes, usually one per node in the cluster, which manage storage attached to the nodes that they run on. HDFS exposes a file system namespace and allows user data to be stored in files. Internally, a file is split into one or more blocks and these blocks are stored in a set of DataNodes. The NameNode executes file system namespace operations like opening, closing, and renaming files and directories. It also determines the mapping of blocks to DataNodes. The DataNodes are responsible for serving read and write requests from the file system’s clients. The DataNodes also perform block creation, deletion, and replication upon instruction from the NameNode.

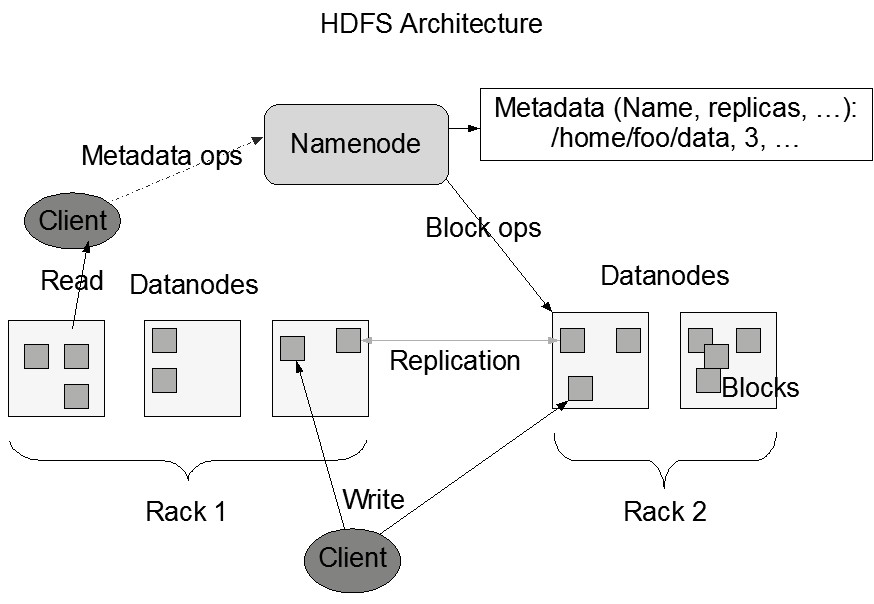

HDFS Architecture – The NameNode and DataNode are pieces of software designed to run on commodity machines. These machines typically run a GNU/Linux operating system (OS). HDFS is built using the Java language; any machine that supports Java can run the NameNode or the DataNode software. Usage of the highly portable Java language means that HDFS can be deployed on a wide range of machines. A typical deployment has a dedicated machine that runs only the NameNode software. Each of the other machines in the cluster runs one instance of the DataNode software. The architecture does not preclude running multiple DataNodes on the same machine but in a real deployment that is rarely the case.

The existence of a single NameNode in a cluster greatly simplifies the architecture of the system. The NameNode is the arbitrator and repository for all HDFS metadata. The system is designed in such a way that user data never flows through the NameNode.

The File System Namespace – HDFS supports a traditional hierarchical file organization. A user or an application can create directories and store files inside these directories. The file system namespace hierarchy is similar to most other existing file systems; one can create and remove files, move a file from one directory to another, or rename a file. HDFS supports user quotas and access permissions. HDFS does not support hard links or soft links. However, the HDFS architecture does not preclude implementing these features.

The NameNode maintains the file system namespace. Any change to the file system namespace or its properties is recorded by the NameNode. An application can specify the number of replicas of a file that should be maintained by HDFS. The number of copies of a file is called the replication factor of that file. This information is stored by the NameNode.

Data Replication – HDFS is designed to reliably store very large files across machines in a large cluster. It stores each file as a sequence of blocks. The blocks of a file are replicated for fault tolerance. The block size and replication factor are configurable per file.

All blocks in a file except the last block are the same size, while users can start a new block without filling out the last block to the configured block size after the support for variable length block was added to append and hsync.

An application can specify the number of replicas of a file. The replication factor can be specified at file creation time and can be changed later. Files in HDFS are write-once (except for appends and truncates) and have strictly one writer at any time.

The NameNode makes all decisions regarding replication of blocks. It periodically receives a Heartbeat and a Blockreport from each of the DataNodes in the cluster. Receipt of a Heartbeat implies that the DataNode is functioning properly. A Blockreport contains a list of all blocks on a DataNode.

The Persistence of File System Metadata – The HDFS namespace is stored by the NameNode. The NameNode uses a transaction log called the EditLog to persistently record every change that occurs to file system metadata. For example, creating a new file in HDFS causes the NameNode to insert a record into the EditLog indicating this. Similarly, changing the replication factor of a file causes a new record to be inserted into the EditLog. The NameNode uses a file in its local host OS file system to store the EditLog. The entire file system namespace, including the mapping of blocks to files and file system properties, is stored in a file called the FsImage. The FsImage is stored as a file in the NameNode’s local file system too.

The NameNode keeps an image of the entire file system namespace and file Blockmap in memory. When the NameNode starts up, or a checkpoint is triggered by a configurable threshold, it reads the FsImage and EditLog from disk, applies all the transactions from the EditLog to the in-memory representation of the FsImage, and flushes out this new version into a new FsImage on disk. It can then truncate the old EditLog because its transactions have been applied to the persistent FsImage. This process is called a checkpoint. The purpose of a checkpoint is to make sure that HDFS has a consistent view of the file system metadata by taking a snapshot of the file system metadata and saving it to FsImage. Even though it is efficient to read a FsImage, it is not efficient to make incremental edits directly to a FsImage. Instead of modifying FsImage for each edit, we persist the edits in the Editlog. During the checkpoint the changes from Editlog are applied to the FsImage. A checkpoint can be triggered at a given time interval (dfs.namenode.checkpoint.period) expressed in seconds, or after a given number of filesystem transactions have accumulated (dfs.namenode.checkpoint.txns). If both of these properties are set, the first threshold to be reached triggers a checkpoint.

The DataNode stores HDFS data in files in its local file system. The DataNode has no knowledge about HDFS files. It stores each block of HDFS data in a separate file in its local file system. The DataNode does not create all files in the same directory. Instead, it uses a heuristic to determine the optimal number of files per directory and creates subdirectories appropriately. It is not optimal to create all local files in the same directory because the local file system might not be able to efficiently support a huge number of files in a single directory. When a DataNode starts up, it scans through its local file system, generates a list of all HDFS data blocks that correspond to each of these local files, and sends this report to the NameNode. The report is called the Blockreport.

The Communication Protocols – All HDFS communication protocols are layered on top of the TCP/IP protocol. A client establishes a connection to a configurable TCP port on the NameNode machine. It talks the ClientProtocol with the NameNode. The DataNodes talk to the NameNode using the DataNode Protocol. A Remote Procedure Call (RPC) abstraction wraps both the Client Protocol and the DataNode Protocol. By design, the NameNode never initiates any RPCs. Instead, it only responds to RPC requests issued by DataNodes or clients.

HBase Working

Zookeeper is used to coordinate shared state information for members of distributed systems. Region servers and the active HMaster connect with a session to ZooKeeper. The ZooKeeper maintains ephemeral nodes for active sessions via heartbeats.

Each Region Server creates an ephemeral node. The HMaster monitors these nodes to discover available region servers, and it also monitors these nodes for server failures. HMasters vie to create an ephemeral node. Zookeeper determines the first one and uses it to make sure that only one master is active. The active HMaster sends heartbeats to Zookeeper, and the inactive HMaster listens for notifications of the active HMaster failure.

If a region server or the active HMaster fails to send a heartbeat, the session is expired and the corresponding ephemeral node is deleted. Listeners for updates will be notified of the deleted nodes. The active HMaster listens for region servers, and will recover region servers on failure. The Inactive HMaster listens for active HMaster failure, and if an active HMaster fails, the inactive HMaster becomes active.

HBase Read or Write

There is a special HBase Catalog table called the META table, which holds the location of the regions in the cluster. ZooKeeper stores the location of the META table.

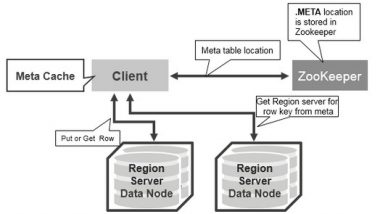

This is what happens the first time a client reads or writes to HBase:

The client gets the Region server that hosts the META table from ZooKeeper.
The client will query the .META. server to get the region server corresponding to the row key it wants to access. The client caches this information along with the META table location.
It will get the Row from the corresponding Region Server.

For future reads, the client uses the cache to retrieve the META location and previously read row keys. Over time, it does not need to query the META table, unless there is a miss because a region has moved; then it will re-query and update the cache.

The Read and Write operations from Client into Hfile can be shown in below diagram.

Step 1) Client wants to write data and in turn first communicates with Regions server and then regions

Step 2) Regions contacting memstore for storing associated with the column family

Step 3) First data stores into Memstore, where the data is sorted and after that, it flushes into HFile. The main reason for using Memstore is to store data in a Distributed file system based on Row Key. Memstore will be placed in Region server main memory while HFiles are written into HDFS.

Step 4) Client wants to read data from Regions

Step 5) In turn Client can have direct access to Mem store, and it can request for data.

Step 6) Client approaches HFiles to get the data. The data are fetched and retrieved by the Client.

Memstore holds in-memory modifications to the store. The hierarchy of objects in HBase Regions is as shown from top to bottom in below table.
